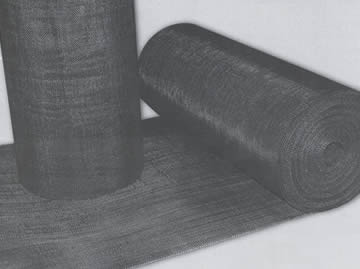

Black Wire Cloth
Material: Super quality low carbon steel wire.

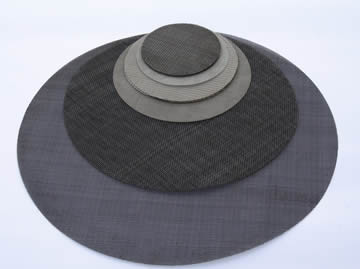

Weaving: Plain or twill woven wire cloth. Can be processed into filter discs of various sizes.
Specialists in cut to size panels in all shapes including, squares, rectangles and circles in all materials and mesh sizes.
Use: Black Wire Cloth is mainly used in filtration of rubber, plastic, petroleum and grains industry.
| Mesh | Wire Diameter(bwg) | Specification | Weight(kg/30m2) |
| 18x18 | 0.45mm | 3'x100' | 50.8 |
| 20x20 | 0.35mm | 3'x100' | 34.1 |
| 22x22 | 0.30mm | 3'x100' | 27.0 |
| 24x24 | 0.33mm | 3'x100' | 36.4 |
| 26x26 | 0.33mm | 3'x100' | 39.4 |
| 28x28 | 0.30mm | 3'x100' | 35.1 |
| 30x30 | 0.30mm | 3'x100' | 37.6 |
| 32x32 | 0.20mm | 3'x100' | 17.8 |
| 34x34 | 0.22mm | 3'x100' | 22.9 |
| 36x36 | 0.22mm | 3'x100' | 24.2 |
| 38x38 | 0.22mm | 3'x100' | 25.6 |
| 40x40 | 0.20mm | 3'x100' | 22.3 |
| 42x42 | 0.17mm | 3'x100' | 16.9 |
| 44x44 | 0.17mm | 3'x100' | 17.7 |
| 46x46 | 0.17mm | 3'x100' | 18.5 |
| 48x48 | 0.17mm | 3'x100' | 19.3 |
| 50x50 | 0.17mm | 3'x100' | 20.1 |
| 56x56 | 0.17mm | 3'x100' | 22.5 |
| 60x60 | 0.17mm | 3'x100' | 24.2 |
| Width from 0.6m to 1.5m | |||
If you need to consult the price, please contact the business department by e-mail:
When you contact us, please provide your detail requirements. That will help us give you a valid quotation.
