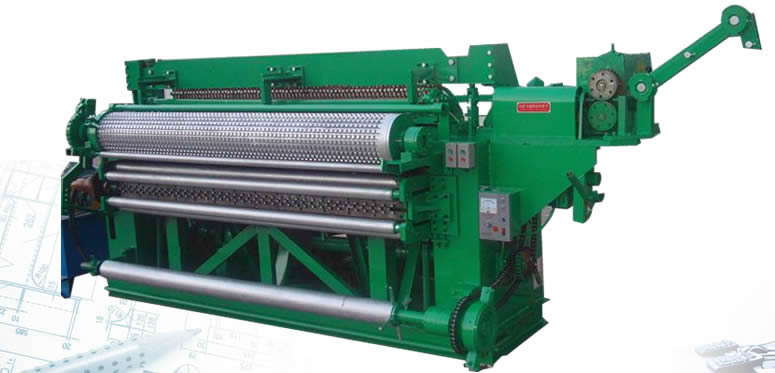

Welded Mesh Machine
Features and Application: Made with big cabinet structure, reliable and stable, low noise, integration of machine and motor, automatic straightening and weft wire feeding, for multi uses. This machine is suitable for light type welded wire mesh with small wire gauges production.
| Roll Width(mm) width |
4×1/2 Model | 1219.2—914.4 |
| 5×1/2 Model | 1524—914.4 | |
| Mesh Opening(mm) size of mesh |
12.7—25.4 | |
| Wire Diameter (mm) Diameter of wire |
Φ0.4—Φ0.9 | |
| Φ0.6—Φ1.0 | ||
| Welding Speed(mesh/min) welding speed |
120 | |
| 90 | ||
| Power | 380/220V 50—60HZ |
|
| Roll Length (mm) | 120m | |
| Out Dimension (mm) Outside size |
2700*1750*1400 | |
| 3100*1750*1400 | ||
If you need to consult the price, please contact the business department by e-mail:
When you contact us, please provide your detail requirements. That will help us give you a valid quotation.
