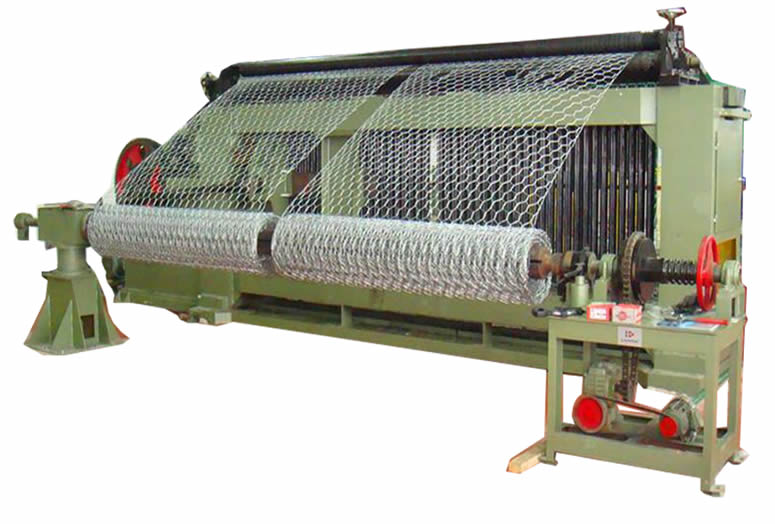

Hexagonal Wire Netting Machine
Description: The hexagonal wire netting machine is designed to render hexagonal screens with galvanized low carbon steel wires, meant for structural, heat insulation, protective, and fencing applications. Hexagonal wire netting machine has several design outlets including horizontal design, ensuring smooth running and high productivity.
Hexagonal Wire Netting Machine
- Bobbin Winding Machine
- Spiral Wending Machine
Features
- Machine makes netting from spring coil and bobbins.
- Bobbin Winding and Spiral Winding machine are required to run the main machine.
- Machine produces Double Twist type of mesh.
- With additional main rack and parts mesh sizes can be made, supplied as optional equipment at additional cost.
Operations
- Machine is run by pinion on the front and rear rack of the machine.
- The wires which are fed from the bobbins and also from the spiral coil (prepared in spiral coiling machine).
- Placed in the holes of pinion on the front and rear rack of the machine produces the netting.
- When the length of netting reaches thedesiserd (45meterSTD) length, the same is cut by scissor.
- They are classified five types according to the different opening: 1", 1 1/4", 11/2", 2", and 3".
- The machine can continuously work.
- Smooth running, low noise.
If you need to consult the price, please contact the business department by e-mail:
When you contact us, please provide your detail requirements. That will help us give you a valid quotation.
